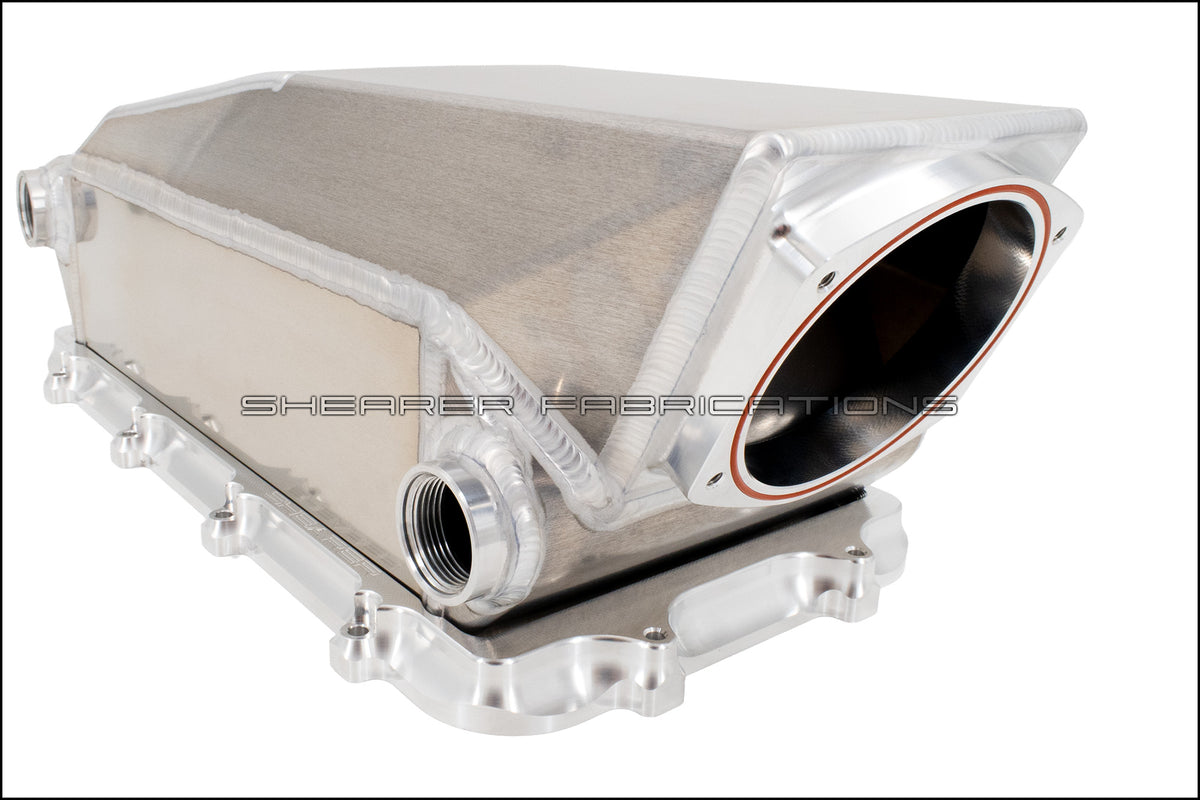

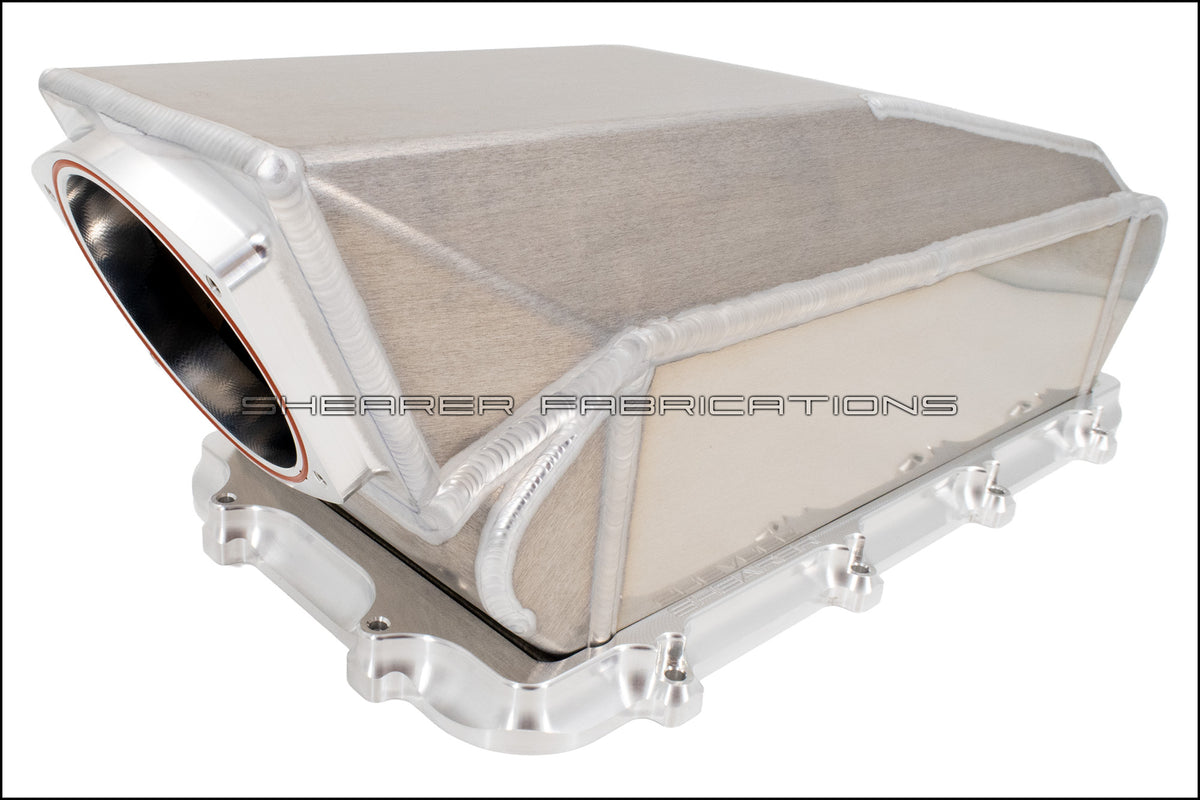

Low Profile Hi-Ram Cooler, 1800hp

Version2 of our 1800hp Intake intercoolers. The same intercooler as years past updated with a stronger 1pc sheetmetal plenum, an intake flange with a new look, and a significantly lower price than before.

The ultimate intercooler for your turbo, or supercharger, system. Ease of mounting, efficient & simple underhood packaging, and the best intake mounted cooling available.

Be sure to add a water pump, ice box and fittings for a complete cooling package.

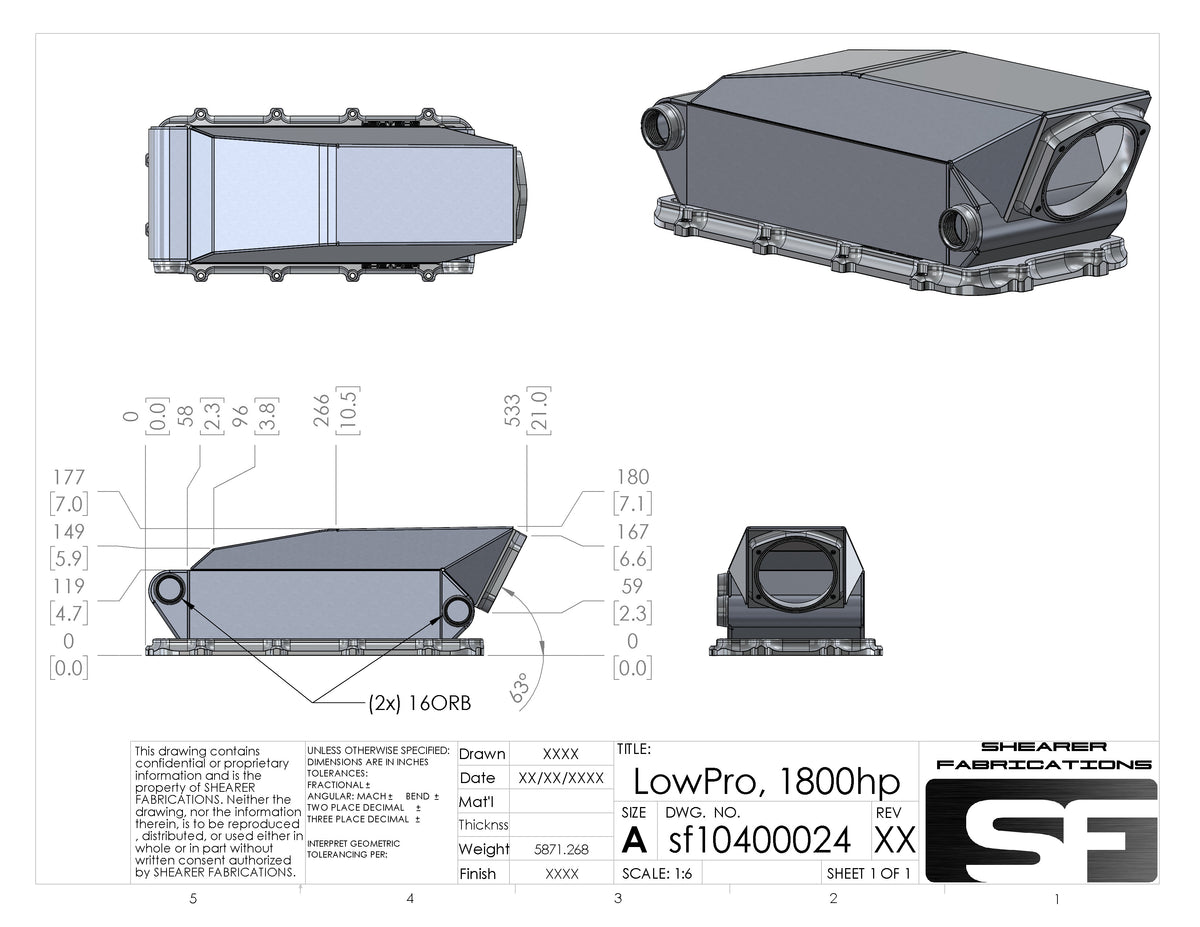

• 7.1" Overall Height from mounting surface.
• 63 degree entry angle.

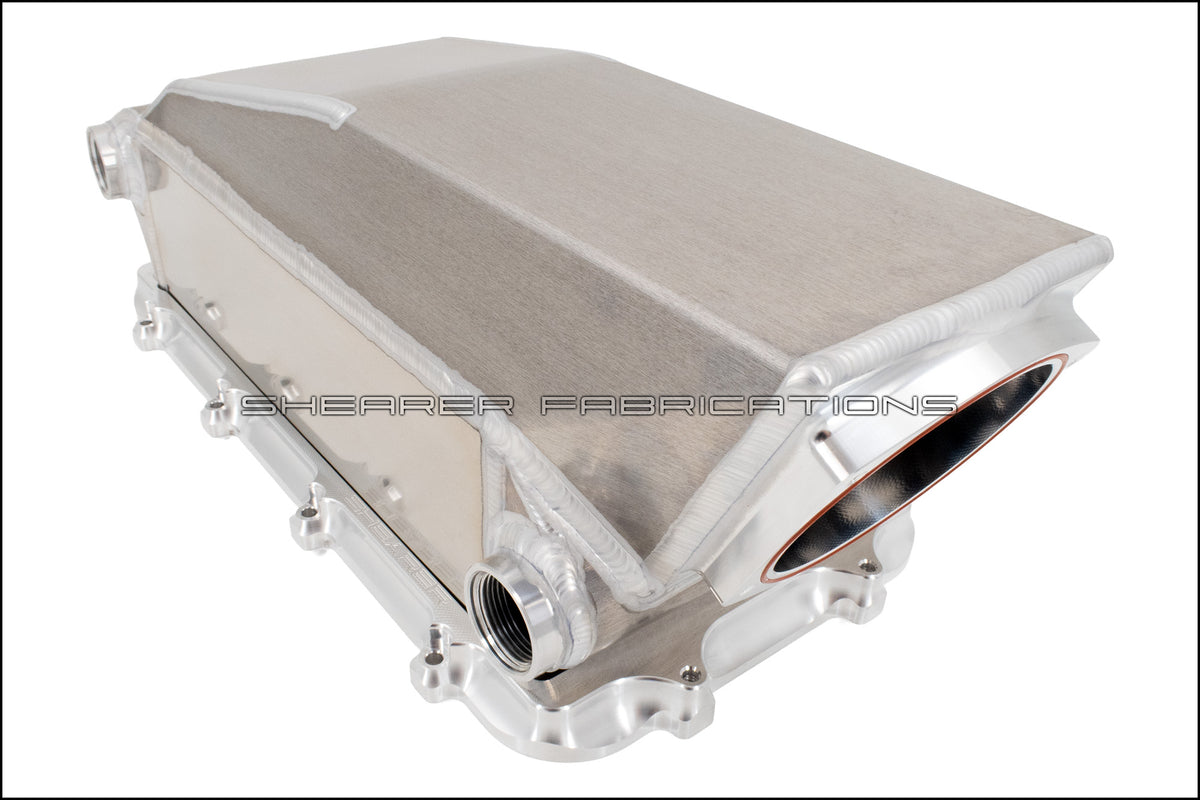

• 1 piece precision formed sheetmetal plenum.
• Billet aluminum mounting flange.

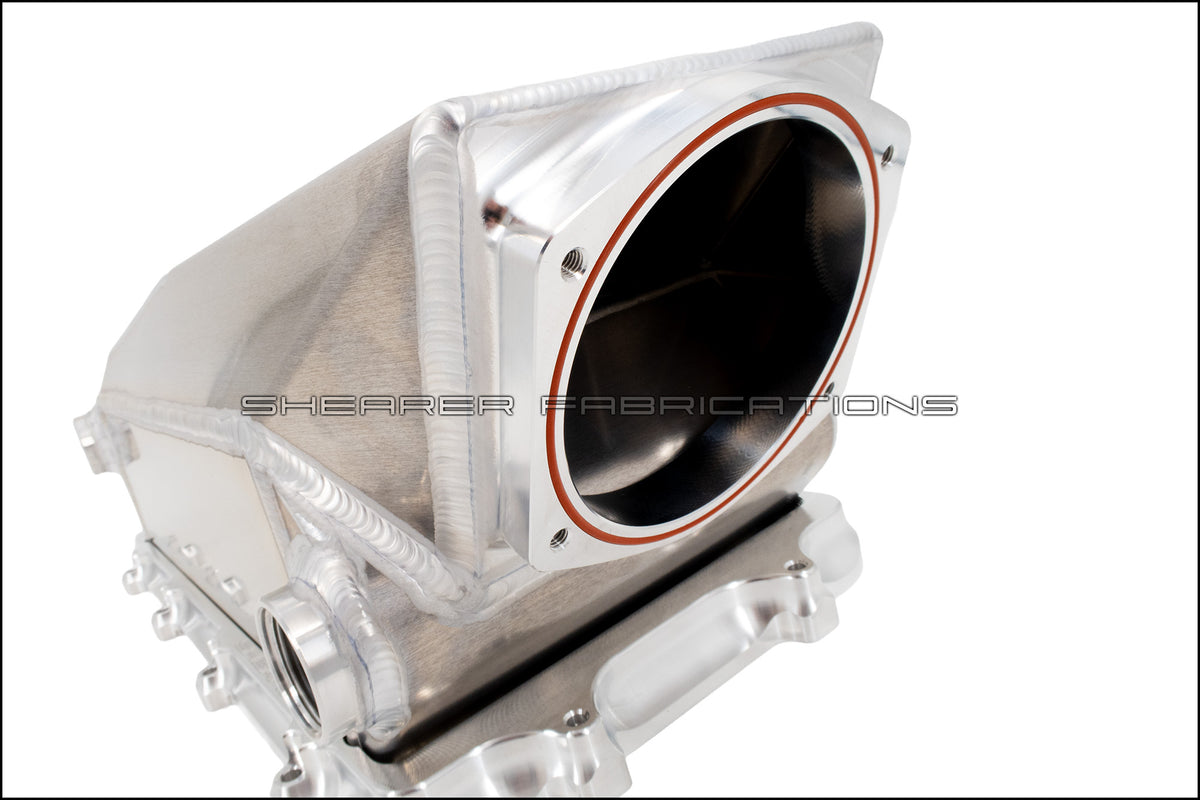

• Billet LS 105mm throttle body flange. With Captive O-Ring gasket.
• 16ORB water connections.

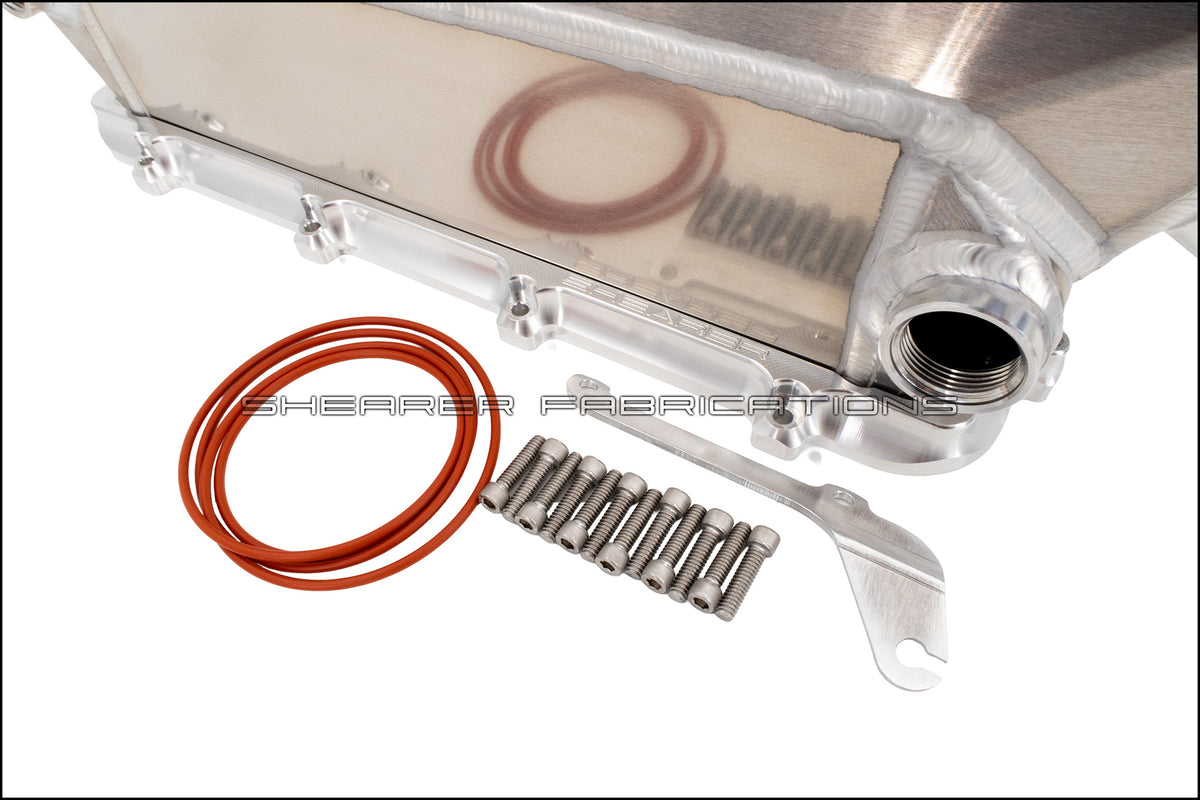

• Stainless Steel Hardware.

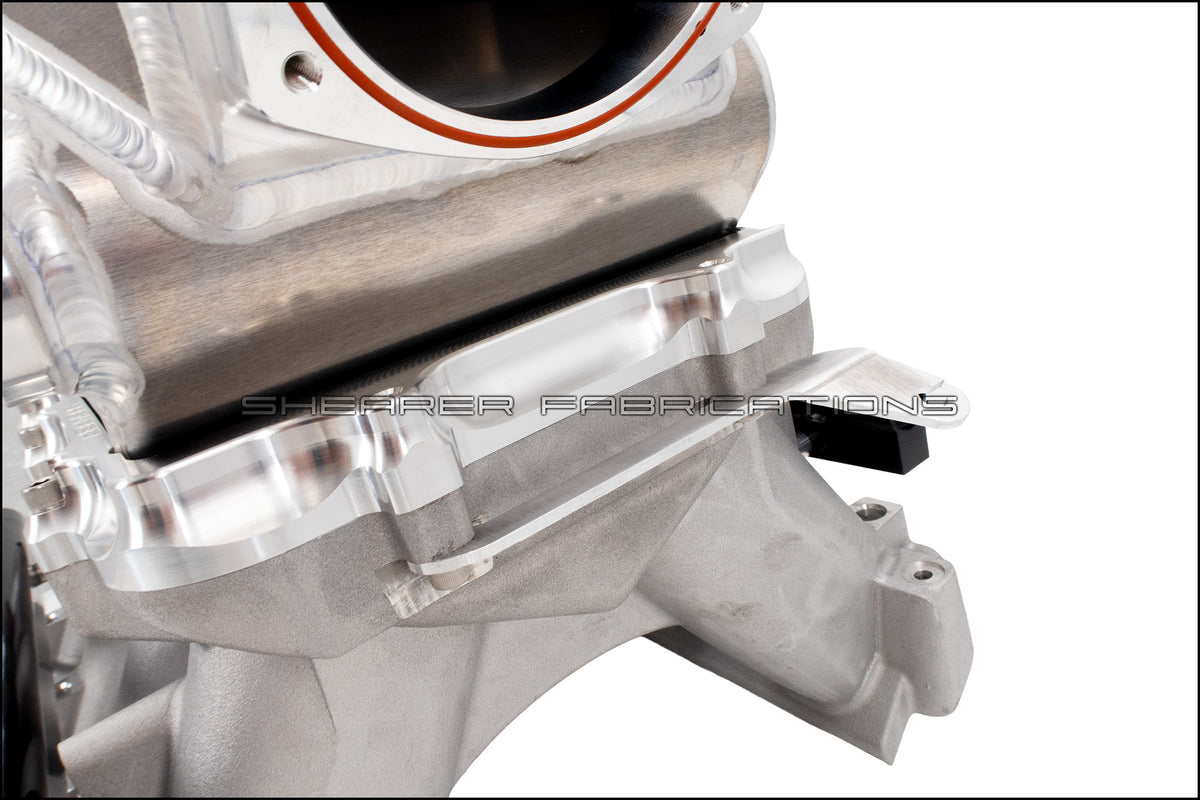

• Throttle Cable bracket.
• O-Ring manifold gasket.
• Made in USA.

Fits:

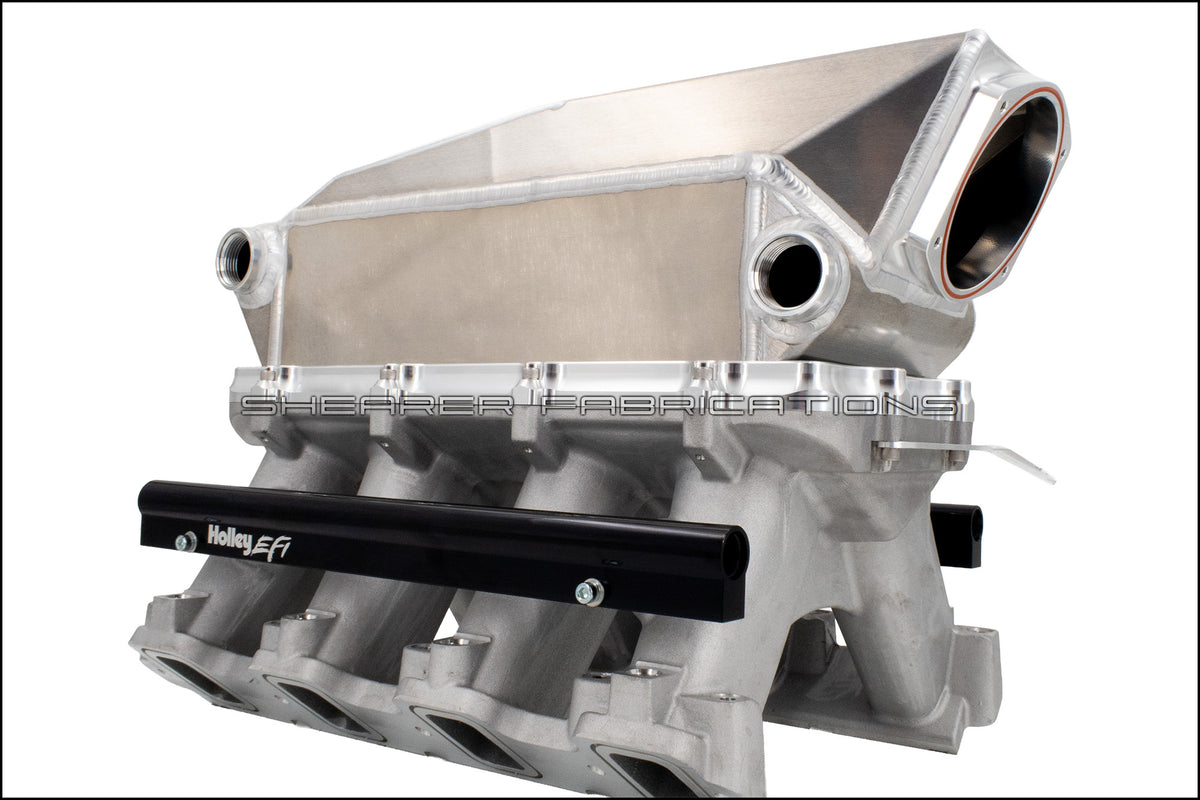

• Holley LS1/LS3/LS7 HiRam.
  • 15.52" overall height from china wall.
• Holley LS1/LS3 Mid-Rise.
• Holley LS1/LS3 LoRam.
  • LS1 = 12.27" overall height from china wall.
  • LS3 - 12.77" overall height from china wall.
• Holley Gen V LT HiRam.
  • 16.54" overall height from china wall.
• Holley Gen V LT LoRam.
  • 13.55" overall height from china wall.
• Holley SBF HiRam.
  • 8.2 Deck 15.49" overall height from china wall.
  • 9.5 deck: 14.6" overall height from china wall.
• Holley Gen 3 Hemi HiRam.
  • 14.79" overall height from intake flange surface.
• BTR Trinity Tunnel Ram, LS1/LS3/LS7.
  • LS1 - 14.3" overall height from china wall.
  • LS3 - 14.3" overall height from china wall.
  • LS7 - 14.8" overall height from china wall.

• BTR Trinity Tunnel Ram, Gen V LT.
  • Short Runner - 14.8" overall height from china wall.

  • Mid Runner - 16.8" overall height from china wall.
  • Long Runner - 18.8" overall height from china wall.
• BTR Trinity Tunnel Ram, Godzilla 6.8/7.3.
  • Mid Runner - 13" overall height to intake surface.
  • Long Runner - 17" overall height to intake surface.
• BTR Trinity Tunnel Ram, Gen3 Hemi.
  • Mid Runner - 15.98" overall height to intake surface.
  • Long Runner - 17.6" overall height to intake surface.

Note!! If you are using this intercooler with a HiRam manifold with the OLD bolt pattern you will need to order our Retrofit Parts Kit<click here>!!

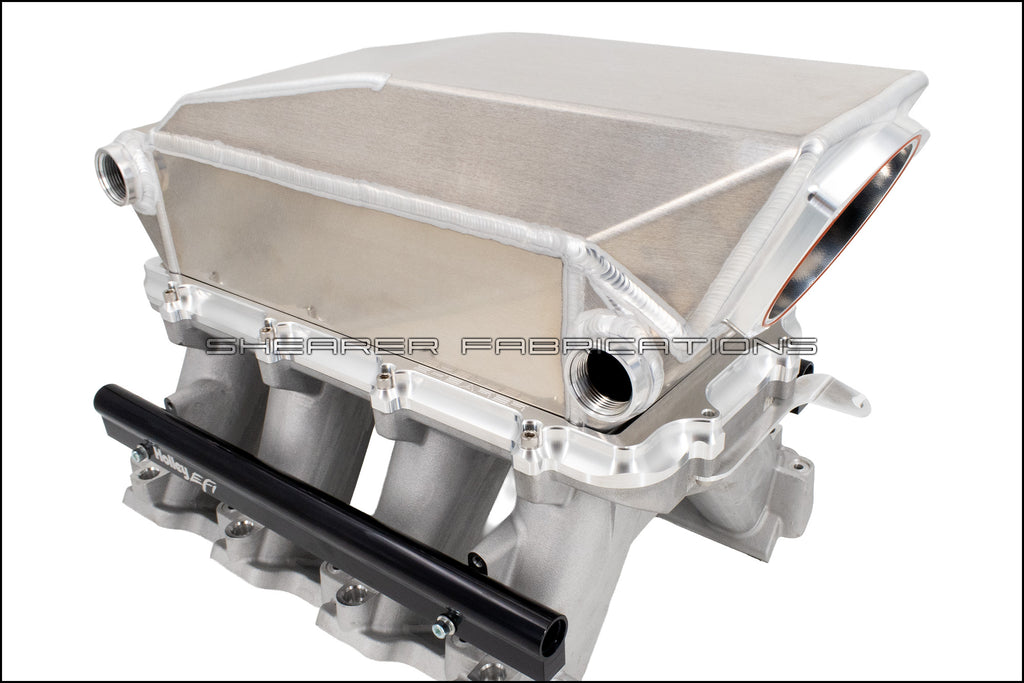

This is comparison is the low Profile Intercooler versus the Holley HiRam intake without an intercooler.
