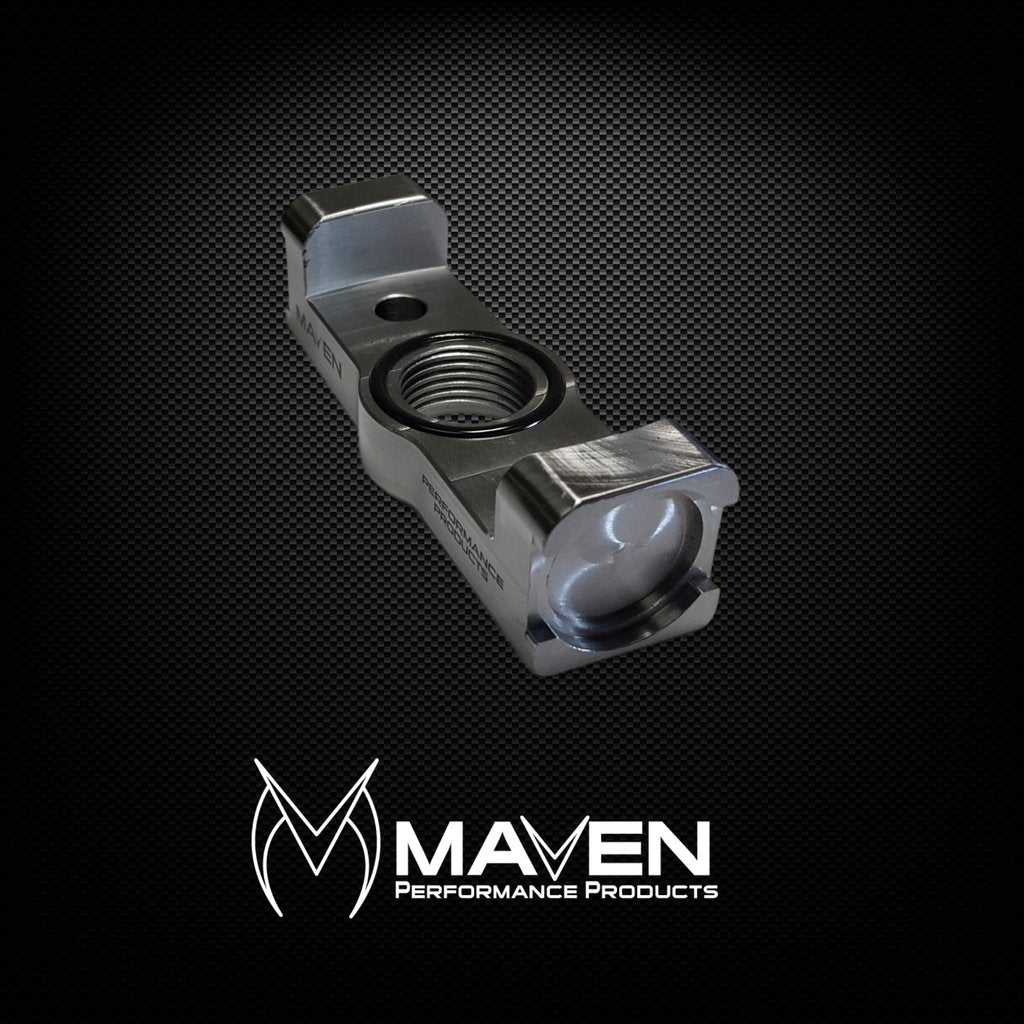

The Maven Performance Billet Steel Turbo Mount supports the turbo from the bearing housing oil drain.
This mount is designed specifically for small frame turbochargers with a 2.0" bolt spacing oil drain flange. e.g. Borg Warner S300, PTE 7275, PTE 7675, GTX42/45, G42, etc...
DESIGNED & MACHINED IN THE USA
BILLET STEEL – 1018 CRS
2 DIFFERENT TUBE DIAMETER POCKETS- 7/8″ & 1″
CENTER MOUNTING ON BEARING HOUSING
-10 ORB/AN DRAIN (GT35 VARIATION= -8 ORB/AN)
O-RING SEAL TO DRAIN SURFACE- NO GASKET REQUIRED
BEARING HOUSING CAN PIVOT 360 DEGREES WITHOUT INTERFERENCE
