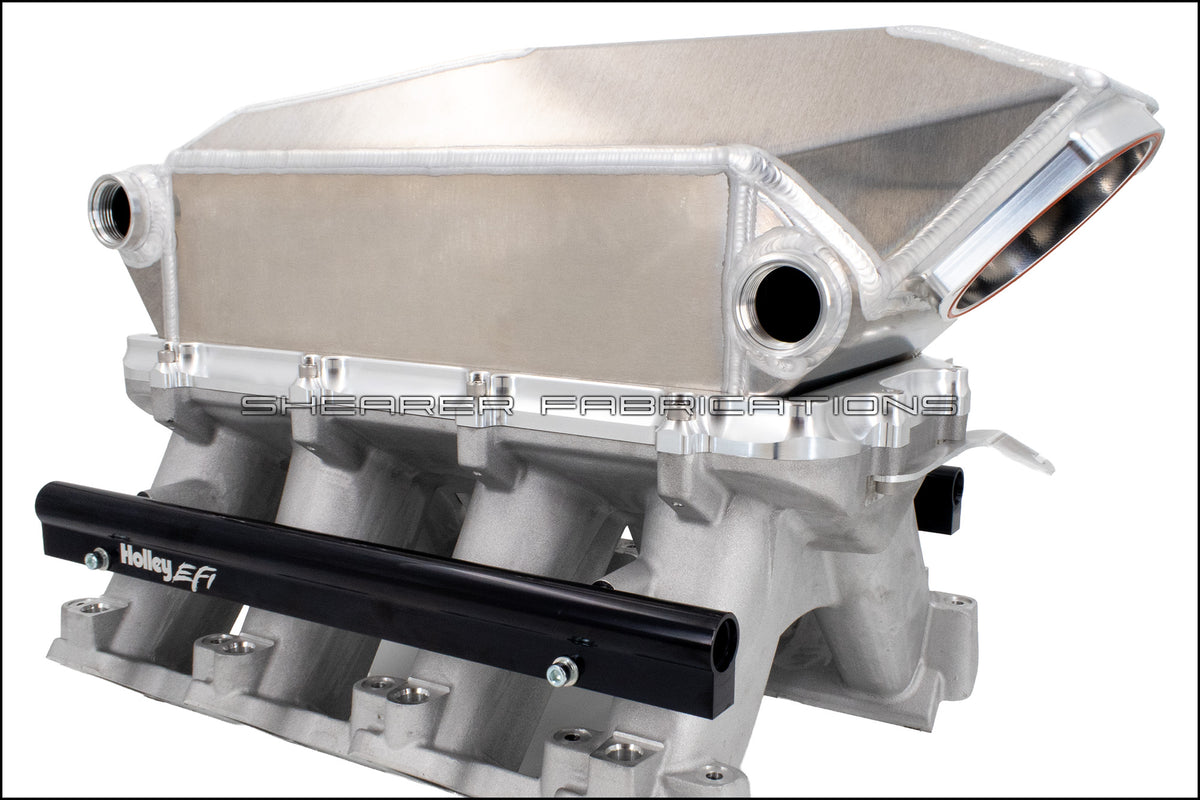

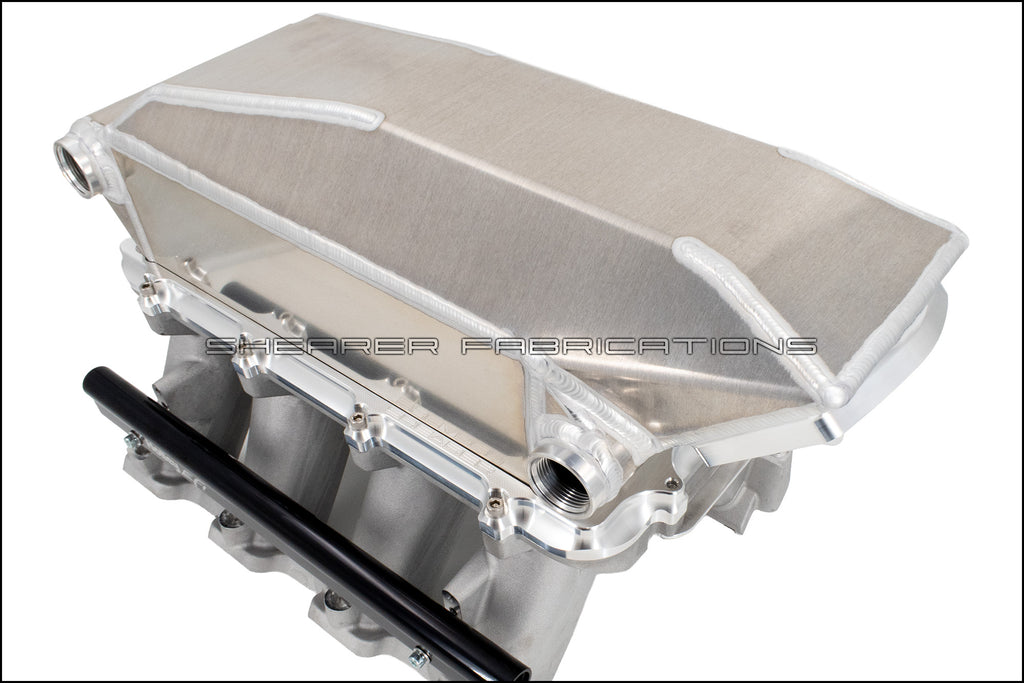

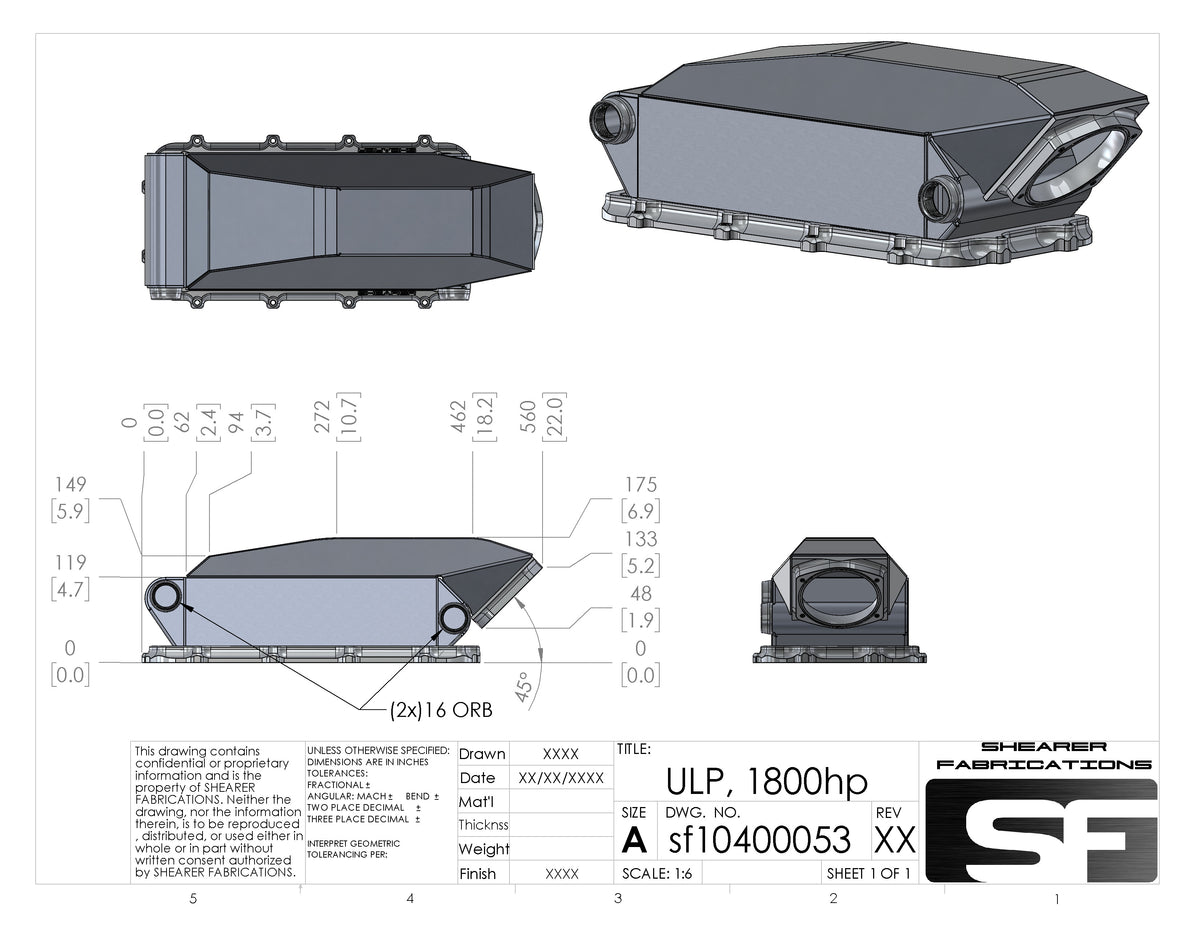

Hi-Ram ULP Intercooler, 1800hp

Version2 of our 1800hp Intake intercoolers. The same intercooler as years past updated with a stronger 1pc sheetmetal plenum, an intake flange with a new look, and a significantly lower price than before.

The ultimate intercooler for your turbo, or supercharger, system. Ease of mounting, efficient & simple underhood packaging, and the best intake mounted cooling available. The ULP is perfect for those vehicles that do not have a lot of room between the engine & radiator to sneak the charge plumbing into a tight spot.

Be sure to add a water pump, ice box and fittings for a complete cooling package.

• 6.9" Overall Height from mounting surface.
• 45 degree entry angle.

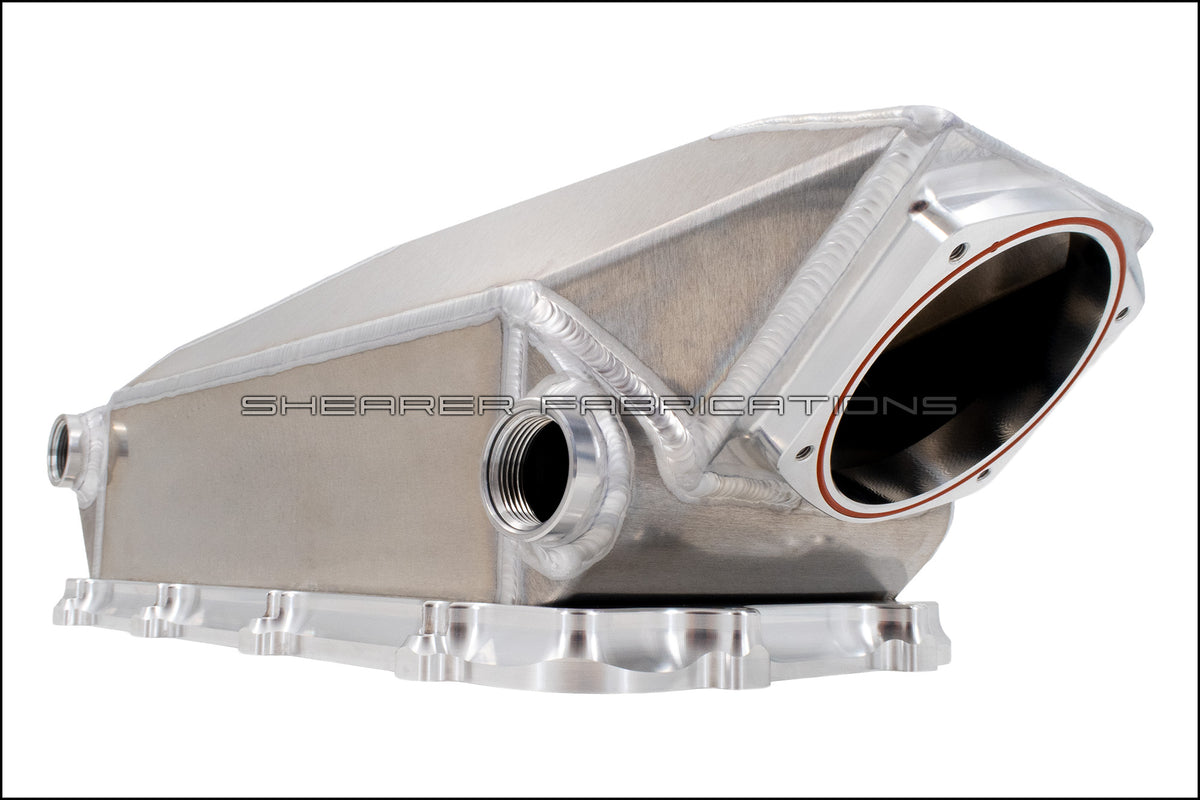

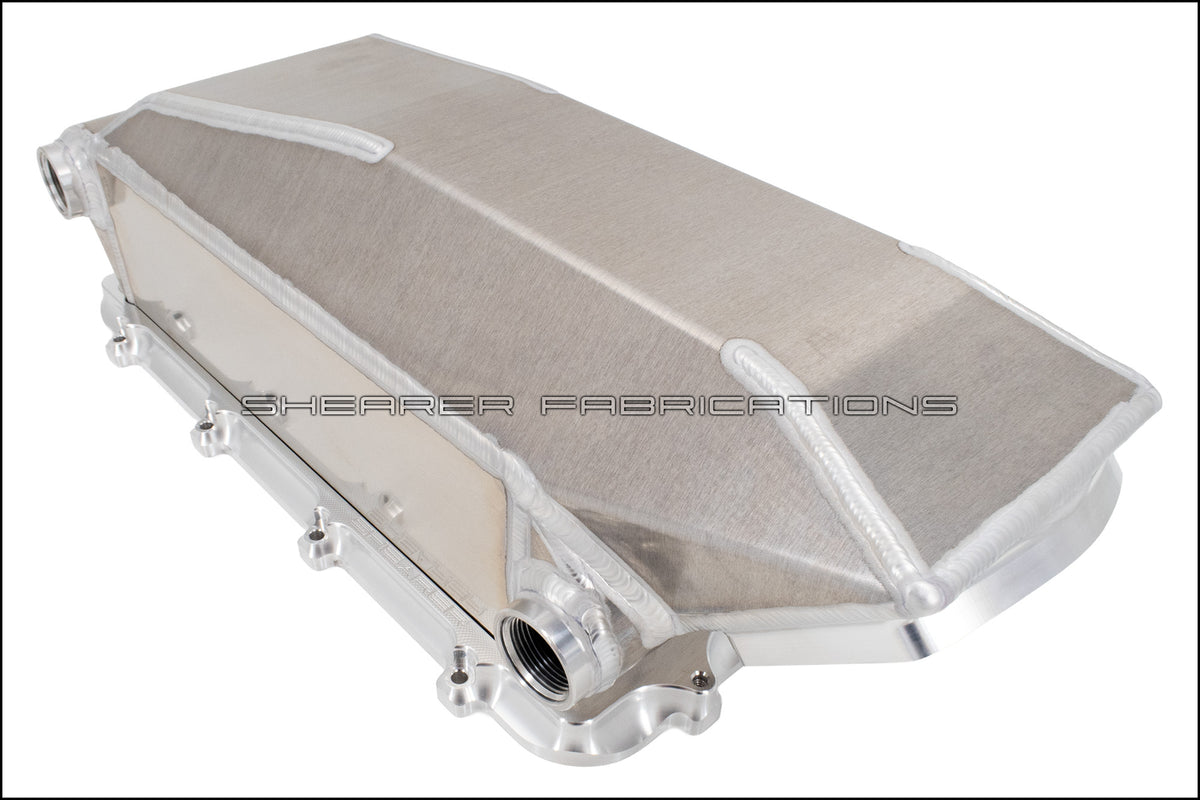

• 1 piece precision formed sheetmetal plenum.

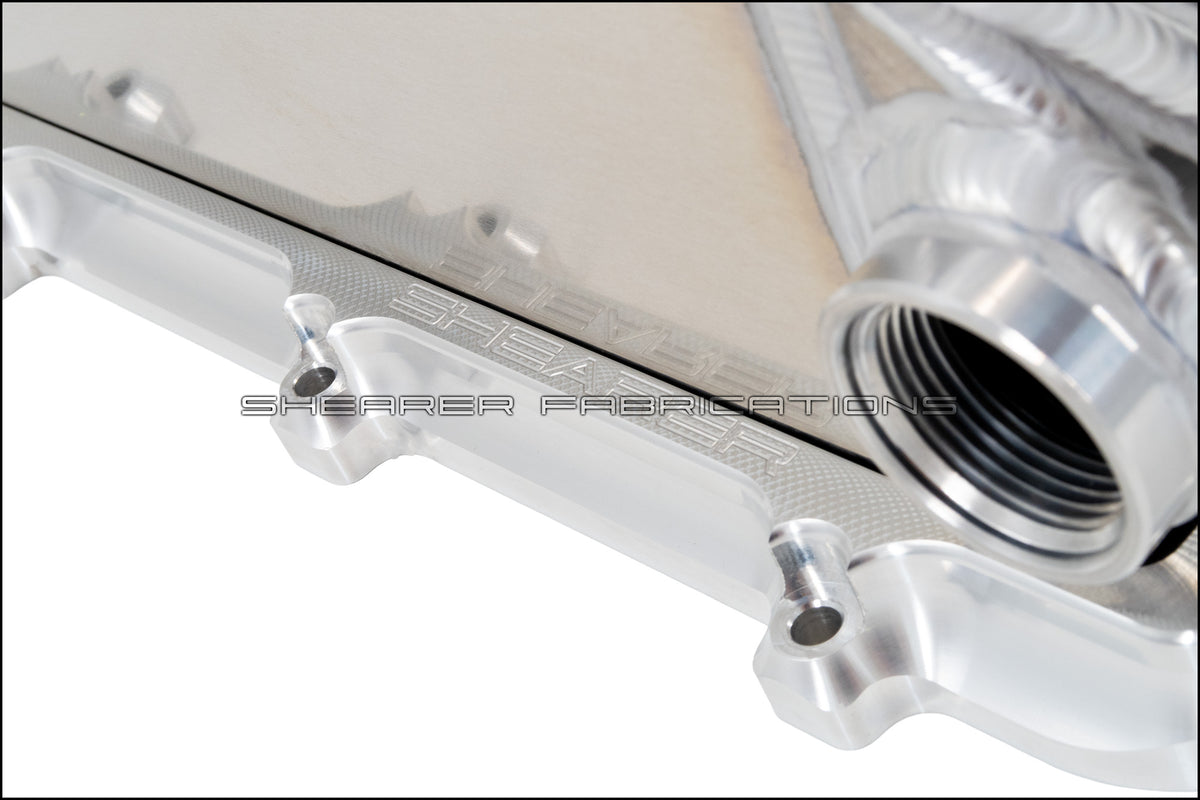

• Billet aluminum mounting flange.

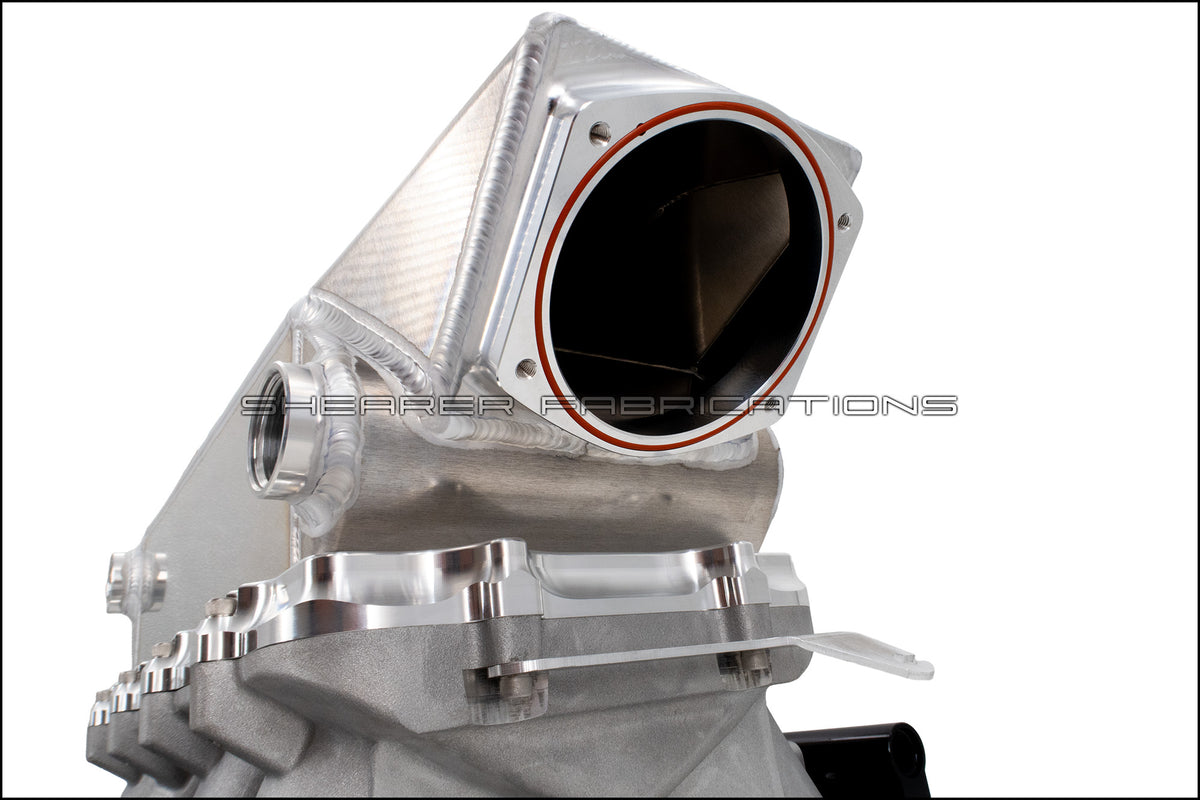

• Billet LS 105mm throttle body flange. With Captive O-Ring gasket.

• 16ORB water connections.

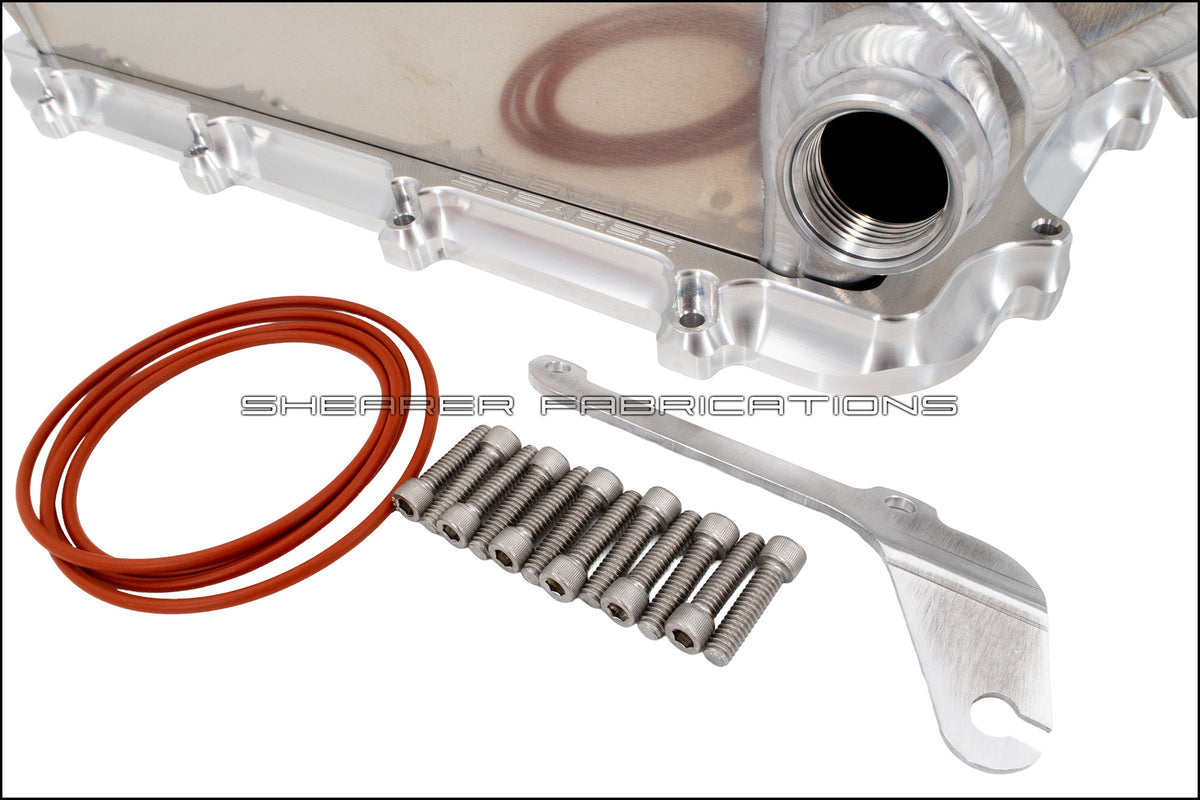

• Stainless Steel Hardware.
• Throttle Cable bracket.
• O-Ring manifold gasket.
• Made in USA.

Fits:

• Holley LS1/LS3/LS7 HiRam.
  • 15.32" overall height from china wall.
• Holley LS1/LS3 Mid-Rise.
• Holley LS1/LS3 LoRam.
  • LS1 - 12.07" overall height from china wall.
  • LS3 - 12.57" overall height from china wall.
• Holley Gen V LT HiRam.
  • 16.34" overall height from china wall.
• Holley Gen V LT LoRam.
  • 13.35" overall height from china wall.
• Holley SBF HiRam.
  • 8.2 Deck 15.29" overall height from china wall.
  • 9.5 deck: 14.4" overall height from china wall.
• Holley Gen 3 Hemi HiRam.
  • 14.59" overall height from intake flange surface.
• BTR Trinity Tunnel Ram, LS1/LS3/LS7.
  • LS1 - 14.1" overall height from china wall.
  • LS3 - 14.1" overall height from china wall.
  • LS7 - 14.6" overall height from china wall.

• BTR Trinity Tunnel Ram, Gen V LT.
  • Short Runner - 14.6" overall height from china wall.

  • Mid Runner - 16.6" overall height from china wall.
  • Long Runner - 18.6" overall height from china wall.
• BTR Trinity Tunnel Ram, Godzilla 6.8/7.3.
  • Mid Runner - 12.8" overall height to intake surface.
  • Long Runner - 16.8" overall height to intake surface.
• BTR Trinity Tunnel Ram, Gen3 Hemi.
  • Mid Runner - 15.78" overall height to intake surface.
  • Long Runner - 17.4" overall height to intake surface.

Note!! If you are using this intercooler with a HiRam manifold with the OLD bolt pattern you will need to order our Retrofit Parts Kit<click here>!!

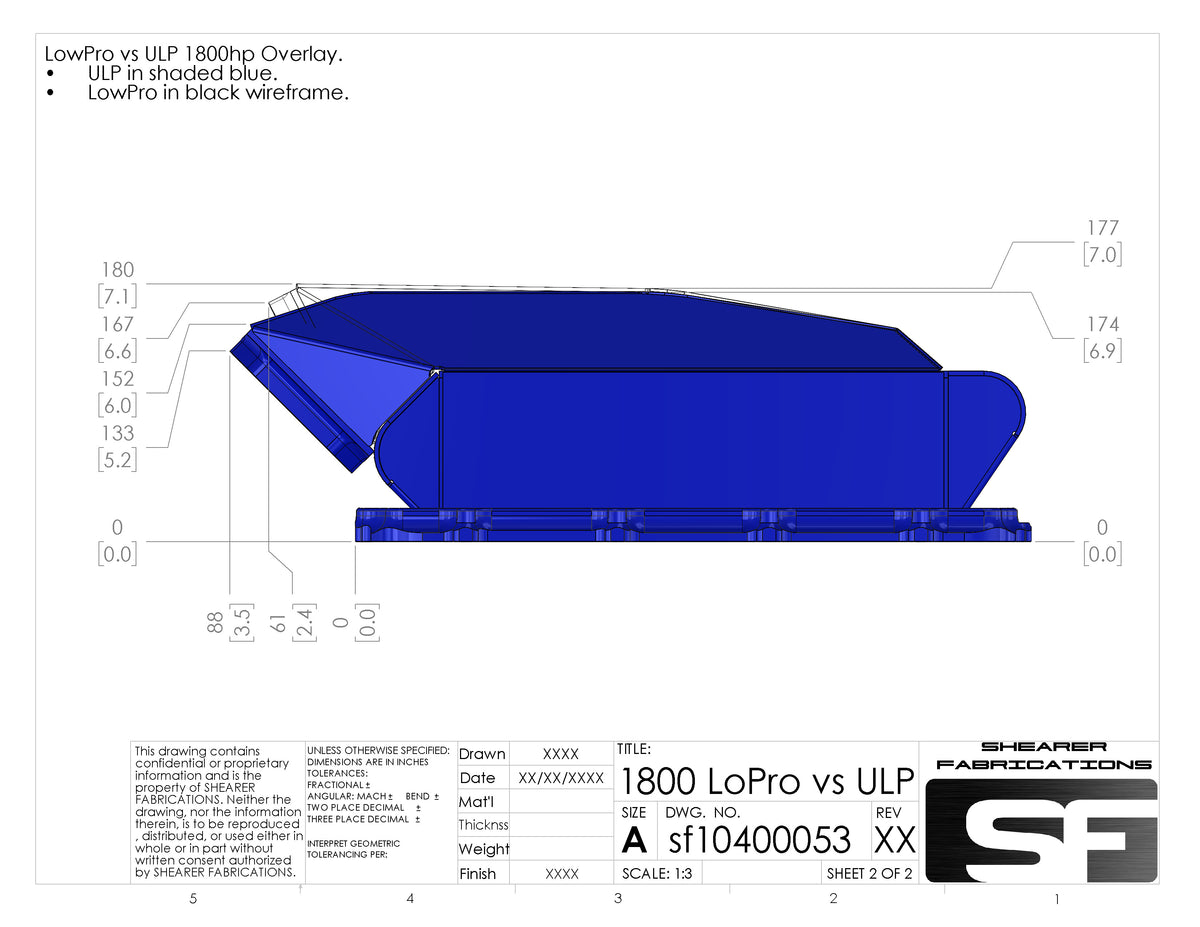

This is comparison of the ULP and the LoPro Intercooler...
