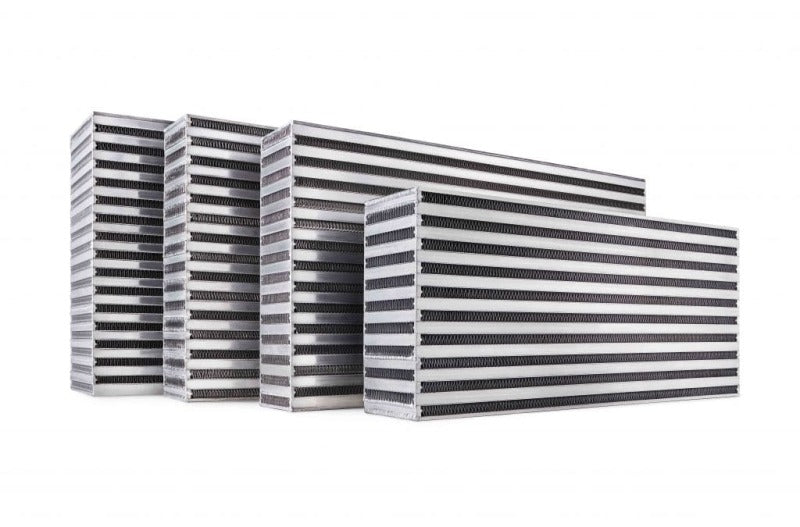

Intercooler Cores

Garrett bar-and-plate intercooler cores utilize optimized internal fin density and flow passages to maximize heat rejection while maintaining controlled pressure drop. Fin density is carefully selected based on flow path balancing surface area for thermal transfer with airflow efficiency to support repeatable performance under sustained boost conditions.

Bar-and-Plate Construction Offset Fin Design Hot & Cold Flow Optimization Balanced Pressure Drop Management Air-to-Air Horizontal Flow Intercooler Cores Air-to-Air Vertical Flow Intercooler Cores Air-to-Liquid Intercooler Cores Bar-and-plate construction
