Name: Injector Dynamics 1700cc Injector Set Honda Talon
Brand: Injector Dynamics
SKU: idx-1700.07.03.34.14.2
Price: 725.0 USD
Availability: InStock

Injector Dynamics 1700cc Injector Set Honda Talon

Roll over image to zoom in Click on image to zoom

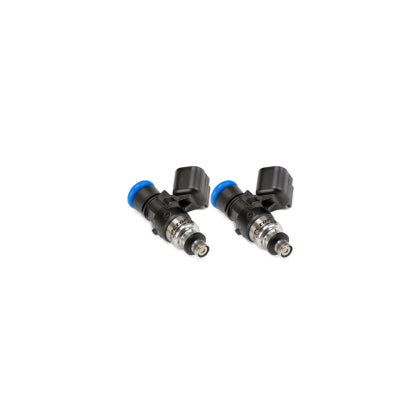

Injector Dynamics ID1700-XDS Injectors for Honda Pioneer 1000 / Talon 1000 w/ Fuel Rail Kit

The ID1700x is the most recent offering from the partnership of Injector Dynamics and Bosch Motorsport. The ID1700x was designed to fill the gap between the ID1300x and the ID2000, and like the ID1300x, it features corrosion resistant internals making it compatible with all known automotive fuels.

A unique magnetic circuit, resulting from a lengthy development program, makes the ID1700x immune to voltage and pressure sensitivity problems that plague other high impedance high flow injectors. The ID1700x excels at high pressures typical of current automotive systems, and will perform flawlessly in these applications.

Basic Specifications

Nominal Flow Rate – 1725cc/min @ 3.0 Bar (43.5 psi) Using Gasoline at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
Fuel Compatibility – Compatible With All Known Fuels
Electrical Connector – USCAR
